# Live Call Routing

Live Call Routing enables end users and internal employees to dial a number and report incidents or leave voicemails for the issues they are experiencing. These calls or voicemails are routed directly to on-call engineers for prompt remediation of reported issues.

The direct channel established between end users and on-call engineers simplifies the process of reporting issues. Depending on the severity or frequency of reported issues, on-call engineers can triage and ensure quick resolutions, thus ensuring that the Mean Time to Resolve (MTTR) for customer-reported issues is always in check.

{% hint style="info" %} <mark style="color:blue;">**We support the provision of both local and toll-free numbers for the following regions:**</mark>

* **United States of America, Canada, United Kingdom**: Easily provision local and toll-free numbers through Squadcast.
* **India**: Reach out to Squadcast support to obtain local and toll-free numbers.
* **Belgium:** (coming soon)
  {% endhint %}

## **Prerequisites**

{% hint style="warning" %} <mark style="color:orange;">**Important:**</mark>

* Live Call Routing is available as an add-on package for accounts on the [Enterprise plan](https://www.squadcast.com/pricing).
* Please reach out to your Squadcast point of contact or to <support@squadcast.com> to get the add-on package activated for your account to start using the feature.
  {% endhint %}

## Add a New Routing Number <a href="#add-a-new-routing-number" id="add-a-new-routing-number"></a>

To begin the setup process by adding an incoming Routing Number,

1. Navigate to the **Live Call Routing** page on the left navigation -> **Add New Routing Number.**
2. Enter the **Name**, and *optional* **Description**, and select an **Owner** for this number.
3. Select the **Country** for which you would like to have this number.
4. Select the type of number you want. The number can either be a **Local** number or a **Toll-free** number.

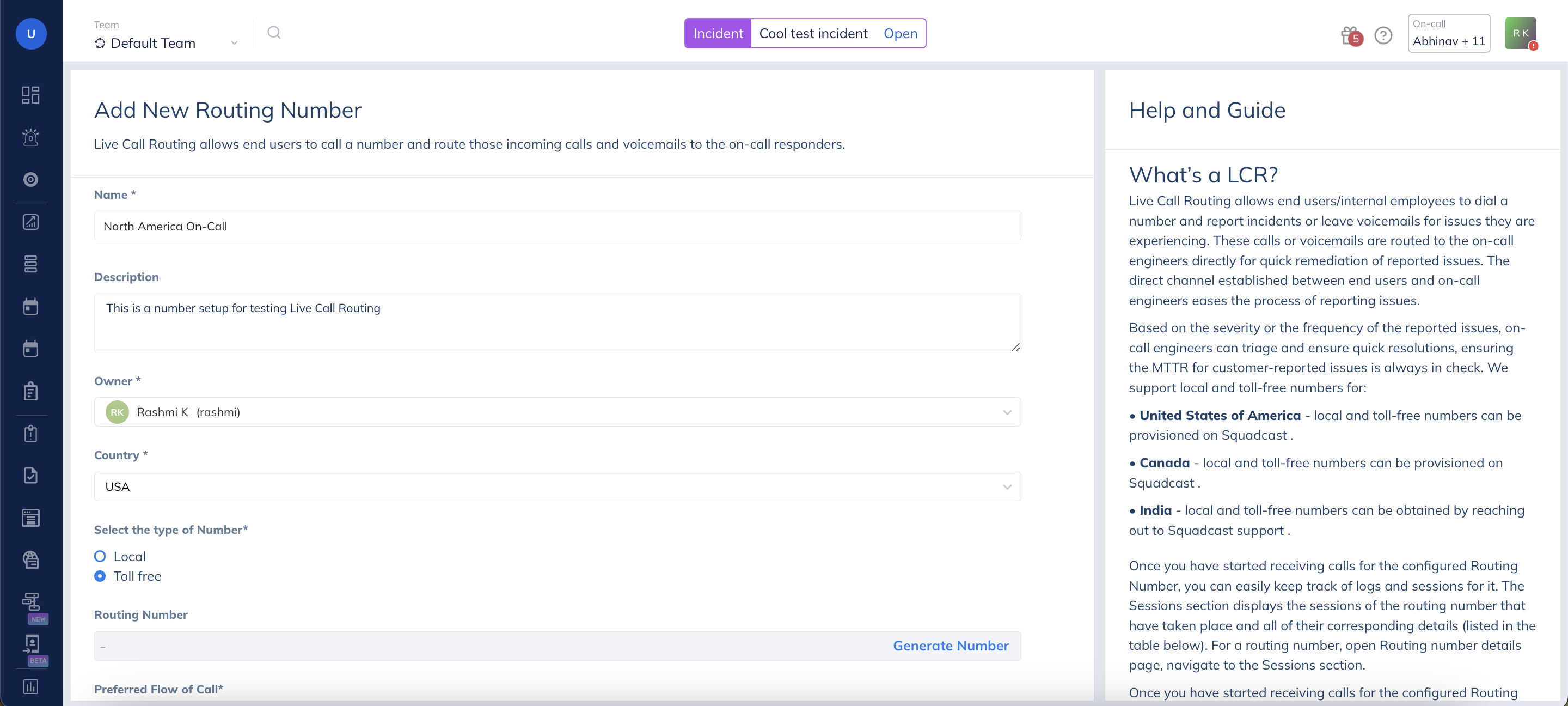

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-ac74c853bebbb166c5976149070b4cdf6c02d5d4%2FScreenshot%202024-04-18%20at%202.40.39%20PM.png?alt=media" alt="" width="563"><figcaption><p>Image. Configure a new Routing Number</p></figcaption></figure>

{% hint style="info" %} <mark style="color:blue;">**Note:**</mark> If you encounter any error in generating the number, please reach out to <support@squadcast.com>.
{% endhint %}

5. Then click **Generate Number.**
6. Select the behavior of the routing number:
   1. Play greeting and go to voicemail. Send the voicemail recording to the current on-call responder(s).
      1. The caller can leave out a voicemail after selecting the affected service and the voicemail will then be attached to the incident created.
   2. Play greeting and call the current on-call responder.
      1. When the caller places the call and selects the service, Squadcast will route the call to the current on-call person(s) in the schedule attached to the Service. Once the on-call person picks up the call, the caller can report the issue to the on-call person.

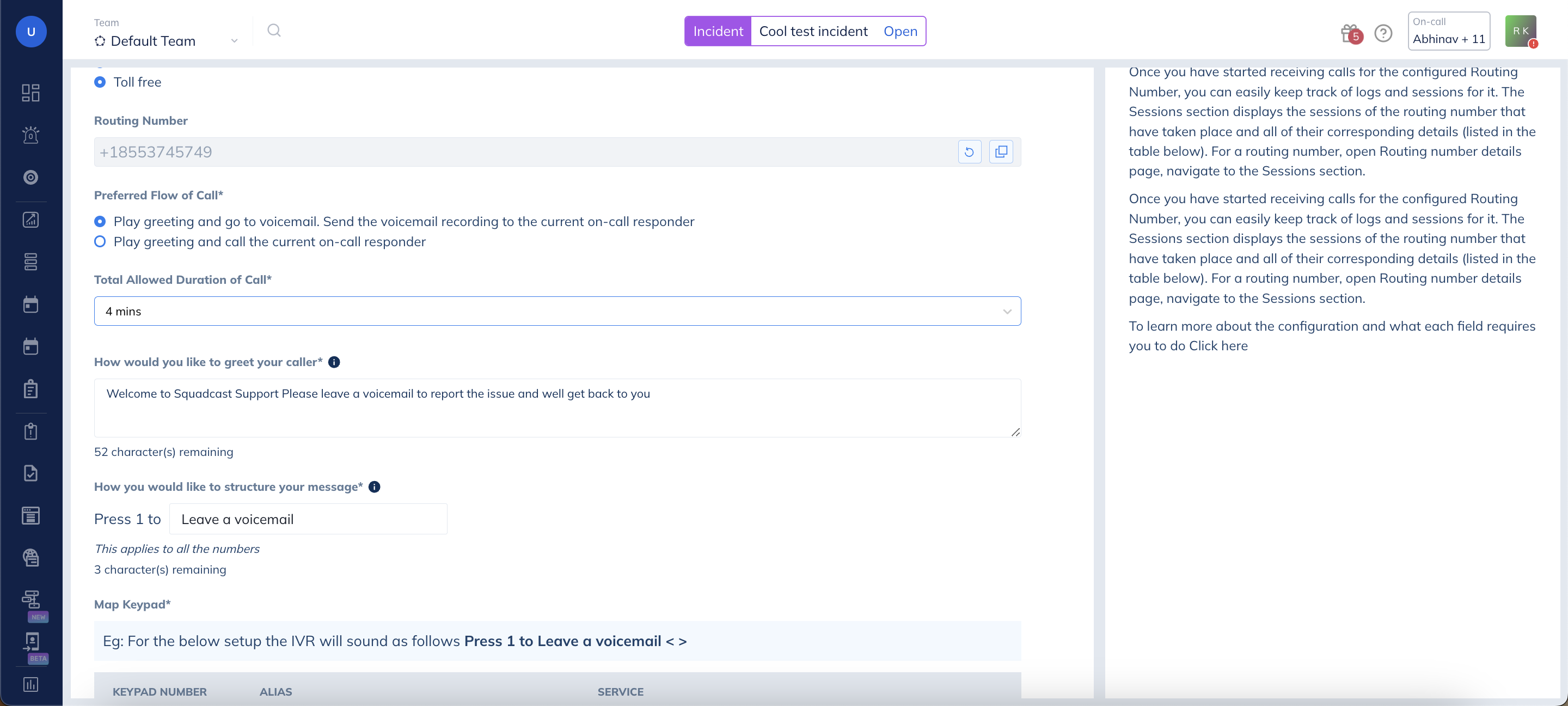

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-bce8b7564fb85d7058c6e94e759aeb2355c457da%2FScreenshot%202024-04-18%20at%202.45.20%20PM.png?alt=media" alt="" width="563"><figcaption><p>Image. Setup the LCR configuration</p></figcaption></figure>

{% hint style="info" %} <mark style="color:blue;">**Note:**</mark> An incident will be created for the reported issue. The incident goes to the Acknowledged state and is assigned to the on-call responder who received the incoming call.

1. If multiple responders are on-call, Squadcast will try to connect the call to 10 people (max), and the first of these responders to answer the call will be connected with the caller, and the rest of the connection attempts will be canceled.

2. If no on-call responders pick up the incoming call, the call then goes to voicemail. The voicemail will then be attached to the created incident.
   {% endhint %}

3. Select the total duration of the call. The call will automatically disconnect after this specified time limit.

4. Craft your greeting message for callers in the text field. This message will be converted from text to speech and will be the first thing callers hear when they dial the number.

5. Structure the message to be read out during the call. This text will also be converted to speech and will play after each key press during the call.

6. Configure the Map Keypad:
   * For each key, a map
     1. A Service
     2. Provide an alias name for the selected Service
     3. Attach Schedules

7. Click **Save**.

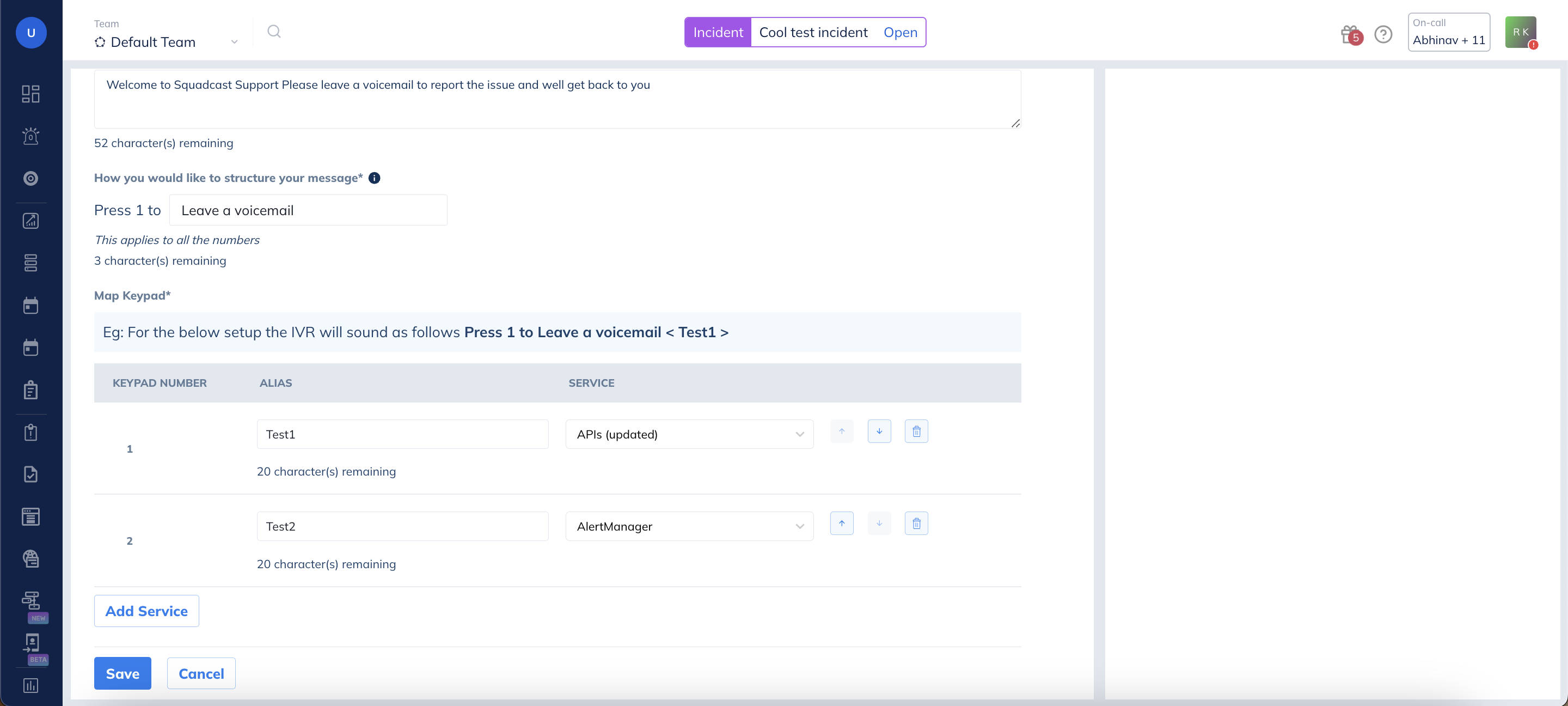

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-51d662bd04f0d0459226808be6a2f103a837b6e3%2FScreenshot%202024-04-18%20at%202.56.40%20PM.png?alt=media" alt="" width="563"><figcaption><p>Image. Save the configuration details</p></figcaption></figure>

That’s it, now you have set up your Routing Number. We recommend testing this number out internally before putting it out for your end users to call.

### Edit a Configured Routing Number <a href="#edit-a-routing-number-config" id="edit-a-routing-number-config"></a>

To edit a configuration for an existing Routing Number,

1. Navigate to the **Live Call Routing** page, hover over the desired configuration, and click **Edit**.
2. Make your changes and then click **Save**.

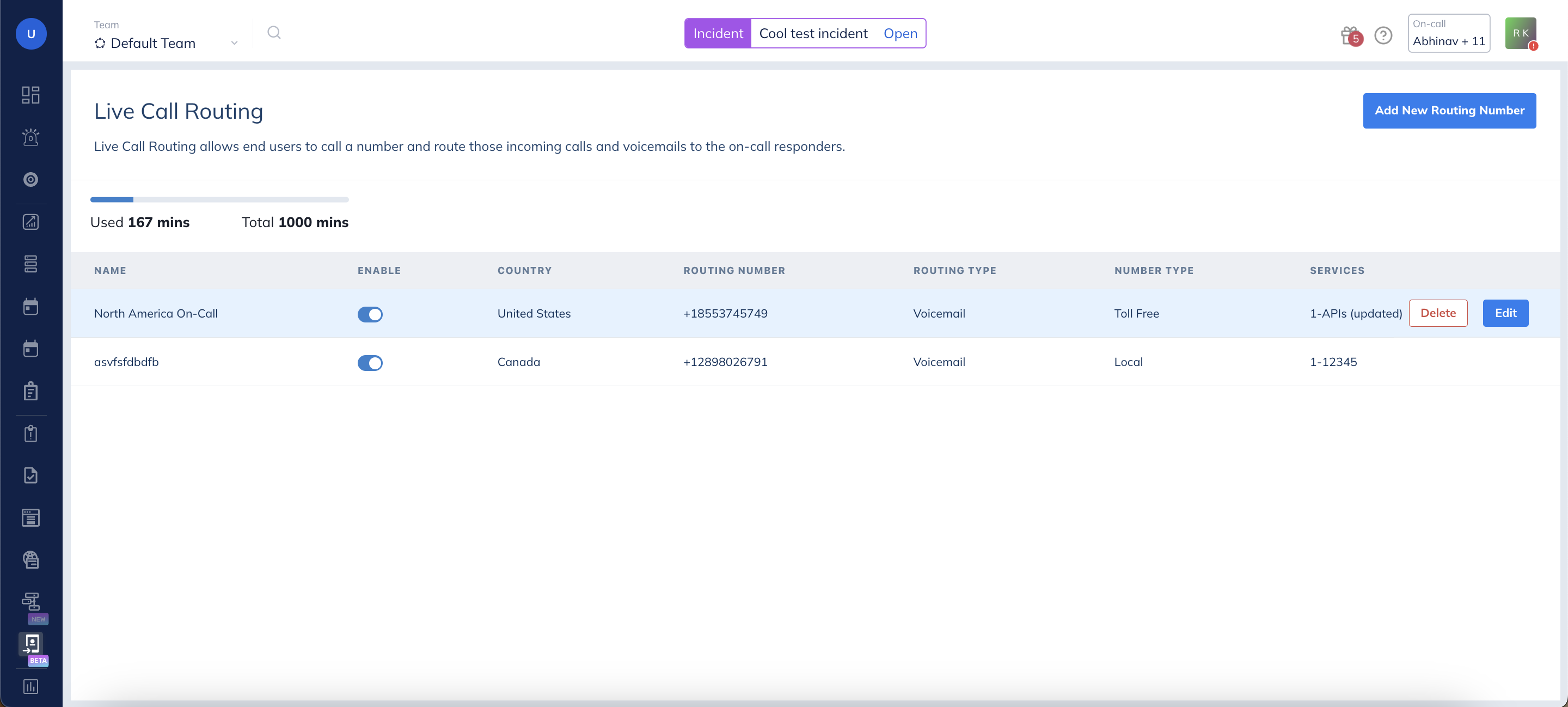

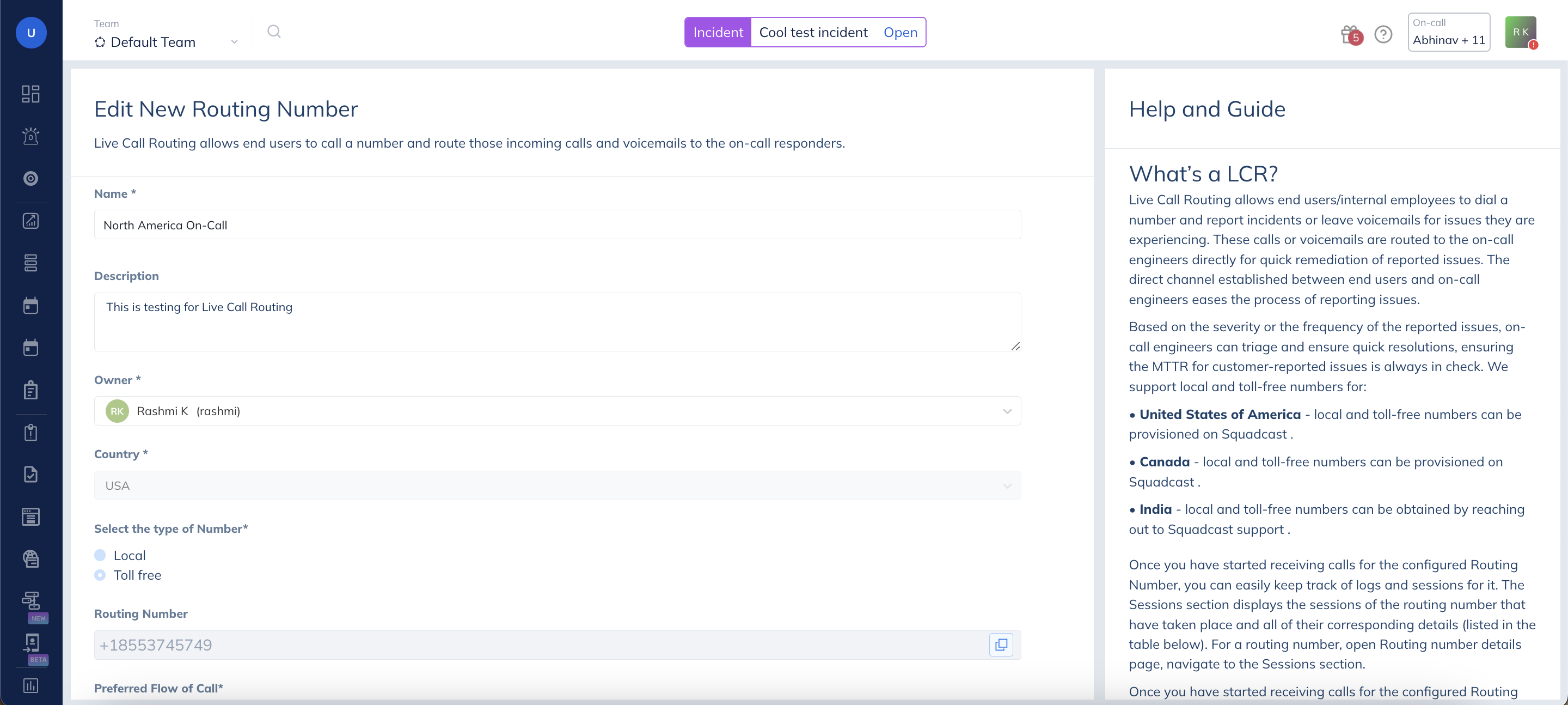

<div><figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-83c9c788cc75d3aecf60ae0a85d93eac97f687f4%2FScreenshot%202024-04-18%20at%202.53.25%20PM.png?alt=media" alt=""><figcaption><p>Image. Edit a configured Routing Number</p></figcaption></figure> <figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-ef29ce3098a12f95adb648bcafa79ca461cbd51a%2FScreenshot%202024-04-18%20at%202.55.22%20PM.png?alt=media" alt=""><figcaption><p>Image. Edit the details</p></figcaption></figure></div>

{% hint style="info" %} <mark style="color:blue;">**Note:**</mark> Please note that you cannot edit the Routing Number, country, or number type. To use a new number, you must add a new Routing Number.
{% endhint %}

## Delete a Routing Number <a href="#delete-a-routing-number" id="delete-a-routing-number"></a>

To delete a Routing Number,

1. Navigate to the **Live Call Routing** page, hover over the number you wish to remove, and click on the **Delete** option.
2. Confirm the deletion in the pop-up confirmation dialog to complete the process.

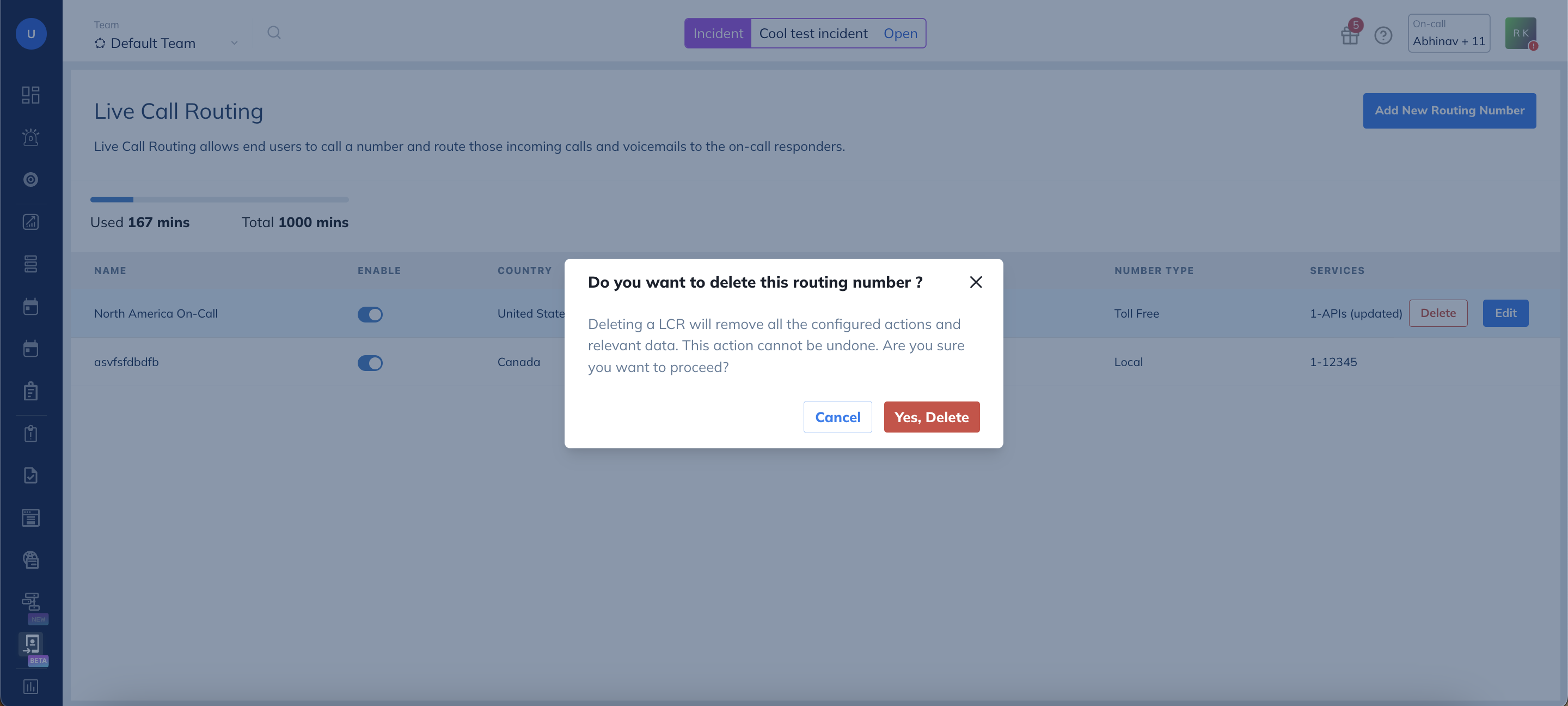

<div><figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-83c9c788cc75d3aecf60ae0a85d93eac97f687f4%2FScreenshot%202024-04-18%20at%202.53.25%20PM.png?alt=media" alt=""><figcaption><p>Image. Delete a Routing Number</p></figcaption></figure> <figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-94c972e7395f777d6c55060b5703251a14f5f1f9%2FScreenshot%202024-04-18%20at%202.53.12%20PM.png?alt=media" alt=""><figcaption><p>Image. Confirm Deletion</p></figcaption></figure></div>

## Sessions

In the Sessions section, you can view all the sessions associated with a routing number along with their respective details, as listed in the table below. To access this information for a specific routing number, simply open the Routing number details page and navigate to the Sessions section.

<table><thead><tr><th width="249">Field</th><th>Description</th></tr></thead><tbody><tr><td>Caller ID</td><td>The number from the call is indicated.</td></tr><tr><td>Incident ID</td><td>The Incident ID of the incident created for the call.</td></tr><tr><td>Recording</td><td>The recording associated with the call.</td></tr><tr><td>Assigned To</td><td>To whom the incident got assigned to.</td></tr><tr><td>Selected Service</td><td>The selected service by the caller during the call.</td></tr><tr><td>Duration</td><td>Total duration of the call. From the user initiating it to the end.</td></tr></tbody></table>

To view further details about a session, hover on a session, click on View Session.

Here you can view the session details and to whom the call was routed to.

## FAQs <a href="#faqs" id="faqs"></a>

<details>

<summary><strong>What happens if I send an SMS to the routing number?</strong></summary>

Sending an SMS to a routing number is not supported. Text messages sent to a Live Call Routing number will not initiate an incident or be directed to the on-call responder.

</details>

<details>

<summary><strong>How many routing numbers can I create?</strong></summary>

You can create a maximum of 5 routing numbers in your organization.

</details>
