# Auvik

[Auvik](https://www.auvik.com/) is a cloud-based network management software gives you instant insight into the networks you manage, and automates complex and time-consuming network tasks.

Route detailed alerts from Auvik to the right users in Squadcast.

## Using Auvik as an Alert Source

1. Navigate to **Services** -> **Service Overview** -> select or search for your Service. Expand the accordion -> In the Alert Sources section, click **Add**.

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-0fe7b657e32aa4dc525b39230eeb6f7628304674%2FScreenshot%202022-07-29%20at%2012.09.33%20PM%20(1)%20(1).png?alt=media&#x26;token=a31a38c5-13c7-4109-a22c-ffb44c420b19" alt="Integration of Auvik as an alert source in squadcast" width="563"><figcaption></figcaption></figure>

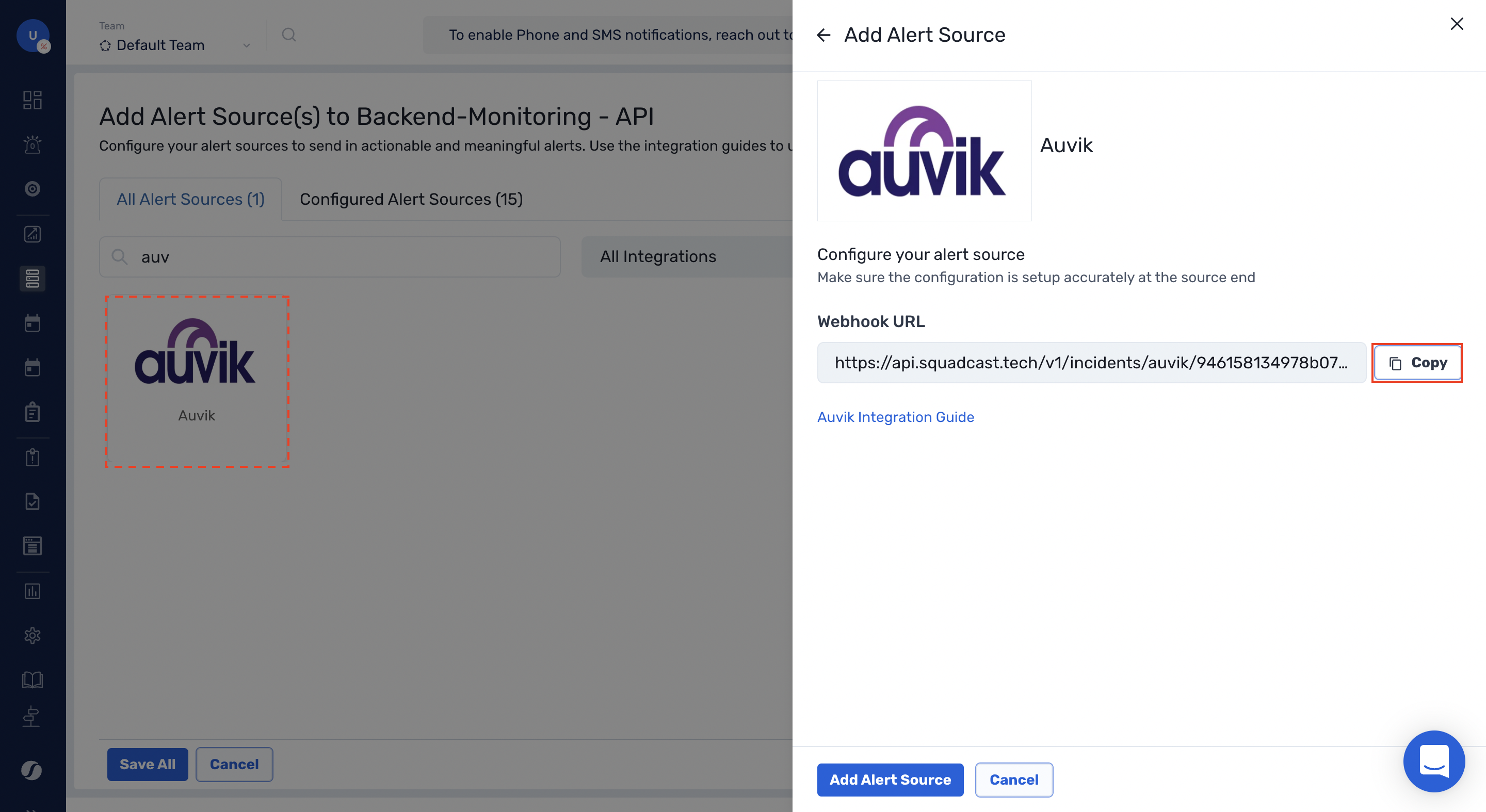

2\. Select **Auvik.** Copy the displayed **Webhook URL** to [configure](#create-a-squadcast-webhook-alert-in-auvik) it within **Auvik.** Finish by clicking **Add Alert Source** -> **Done.**

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-060252a8a4edc7829430c9199a9eefbe7241353d%2Fauvik_0.png?alt=media" alt="Webhook URL configuration within Auvik in Squadcast" width="563"><figcaption></figcaption></figure>

{% hint style="warning" %} <mark style="color:orange;">**Important**</mark>**:**

When an alert source turns <mark style="color:green;">Active</mark>, it’ll show up under Configured Alert Sources. You can either generate a test alert from the integration or wait for a real-time alert to be generated by the Alert Source.\
\
An Alert Source is <mark style="color:green;">active</mark> if there is a recorded incident via that Alert Source for the Service.
{% endhint %}

## Create a Squadcast Webhook Alert in Auvik

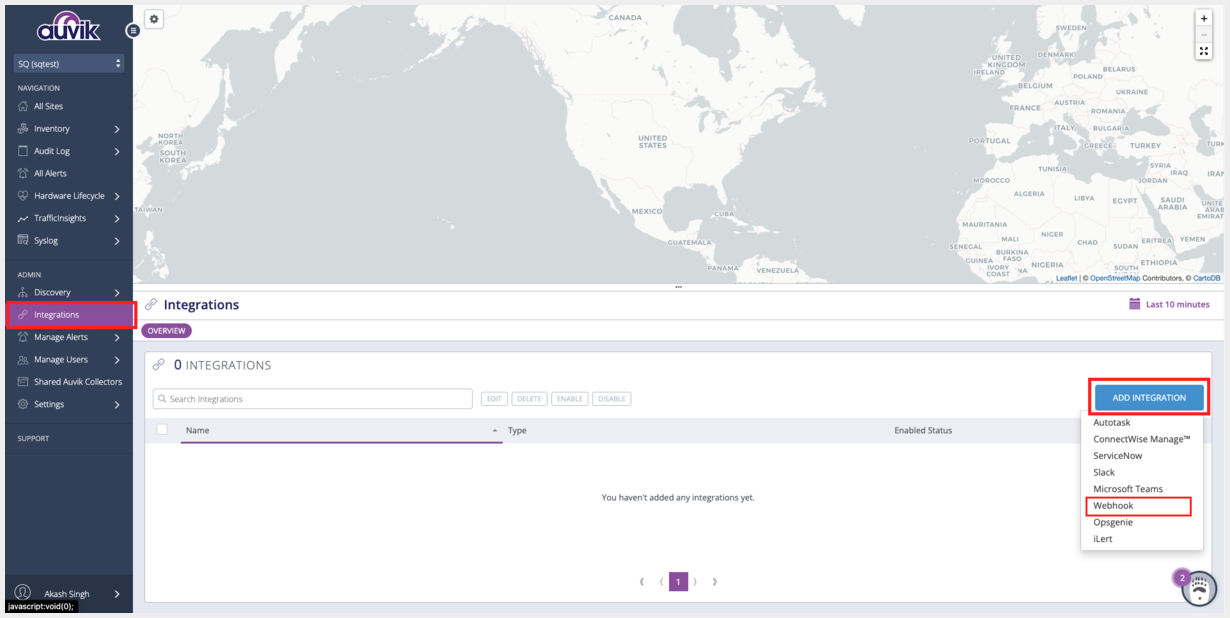

1. Login to your Auvik dashboard. Navigate to the **Integrations** section, click on the **ADD INTEGRATION** and select **Webhook**

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-2a1555d6303bfc5cd1e53204f0dd8fbc34238dbf%2Fauvik_2.png?alt=media" alt="Create a Squadcast Webhook Alert in Auvik- Add integration and select Webhook" width="563"><figcaption></figcaption></figure>

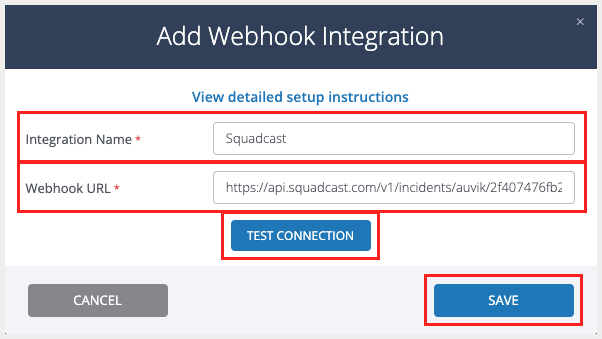

2. Put in the **Integration Name** and paste the previously copied Squadcast Webhook URL in the **Webhook URL** placeholder. Then click on **SAVE**

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-457e9e56af7feafa5c895bf972380d5cb35069d9%2Fauvik_3.png?alt=media" alt="Use Integration name and Squadcast Webhook URL" width="452"><figcaption></figcaption></figure>

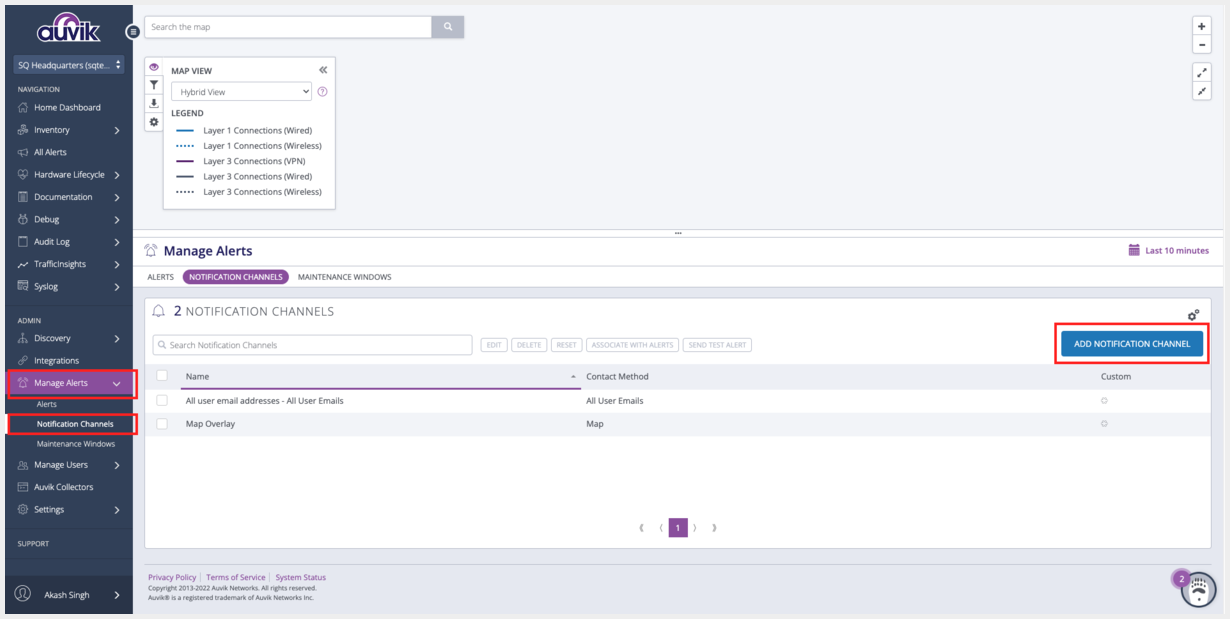

3. Now, under **Manage Alerts** section select **Notification Channels**. Then click on **ADD NOTIFICATION CHANNEL**

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-e4cbe08c44e0bb01224ca57cb25669681b35f0d0%2Fauvik_4.png?alt=media" alt="Manage Alerts: Add Notification Channel in Auvik" width="563"><figcaption></figcaption></figure>

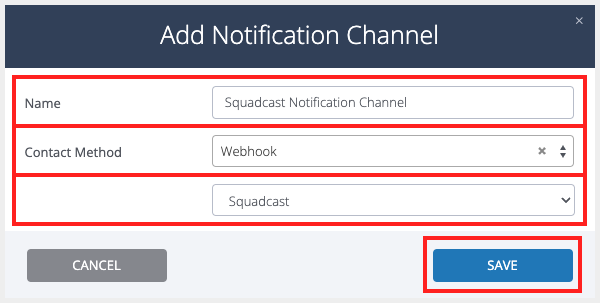

4. Put in the **Name** and select **Webhook** as **Contact Method**. Then pick up the previously created integration and click on **SAVE**

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-d33591fc3b3873dd1e66c960a903de787dfef786%2Fauvik_5.png?alt=media" alt="Save Webhook Integration - Contact Method: Webhook" width="450"><figcaption></figcaption></figure>

Now, users can add these notification channels to various alerts and That's it, you are good to go! Your Auvik integration is now complete.

* Whenever Auvik fires an alert, an incident will be created in Squadcast for it.
* Once the **Cleared** alert is sent, it will automatically be resolved in Squadcast as well.
