Checkly
Send alerts to Squadcast from Checkly
Checkly is an API monitoring and synthetic monitoring solution aimed at development and operations teams, giving teams broad, deep and exact control over how APIs and web apps should be monitored.
Route detailed monitoring alerts from Checkly to the right users in Squadcast.
- 1.Navigate to Services -> Service Overview -> select or search for your Service. Expand the accordion -> In the Alert Sources section, click Add.
2. Select Checkly. Copy the displayed Webhook URL to configure it within Checkly. Finish by clicking Add Alert Source -> Done.
Important:
When an alert source turns Active, it’ll show up under Configured Alert Sources, you can either generate a test alert from the integration or wait for a real-time alert to be generated by the Alert Source. An Alert Source is active if there is a recorded incident via that Alert Source for the Service.
(1) In the app, navigate to Alert Settings on the sidebar
(2) Click on Add more channels to add the Webhook. Additionally, configure other Alert Settings that are available on this page based on your requirements
(3) Select Add channel for Webhook
(4) Fill in the details as indicated below:
(a) Give it a meaningful name, such as Squadcast Webhook
(b) Choose POST from the Method drop-down and paste the Webhook URL copied from Squadcast in the URL placeholder
(c) Copy and paste the below template in Body
{
"check_name": "{{CHECK_NAME}}",
"check_id": "{{CHECK_ID}}",
"check_type": "{{CHECK_TYPE}}",
"message": "{{ALERT_TITLE}}",
"alert_type": "{{ALERT_TYPE}}",
"check_result_id": "{{CHECK_RESULT_ID}}",
"response_time": "{{RESPONSE_TIME}}",
"api_check_response_status_code": "{{API_CHECK_RESPONSE_STATUS_CODE}}",
"api_check_response_status_text": "{{API_CHECK_RESPONSE_STATUS_TEXT}}",
"run_location": "{{RUN_LOCATION}}",
"link": "{{RESULT_LINK}}",
"ssl_days_remaining": "{{SSL_DAYS_REMAINING}}",
"ssl_check_domain": "{{SSL_CHECK_DOMAIN}}",
"started_at": "{{STARTED_AT}}",
"tags": [{{#each TAGS}} "{{this}}" {{#unless @last}},{{/unless}} {{/each}}],
"region": "{{REGION}}",
"uuid": "{{$UUID}}",
"random_number": "{{$RANDOM_NUMBER}}"
}
Important:

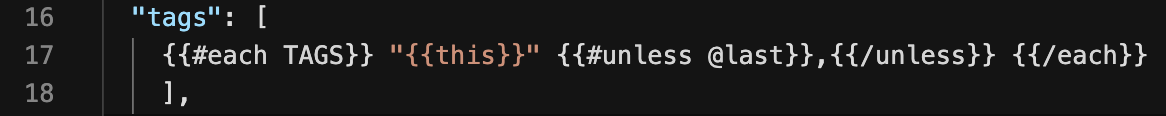

(1) Checkly auto-reformats the content copied from above that you paste which ruptures the template syntax, resulting in the failure of the Test webhook option and hence, alert propagation to Squadcast. Please ensure the copied content is edited to match the syntax in the screenshot below.

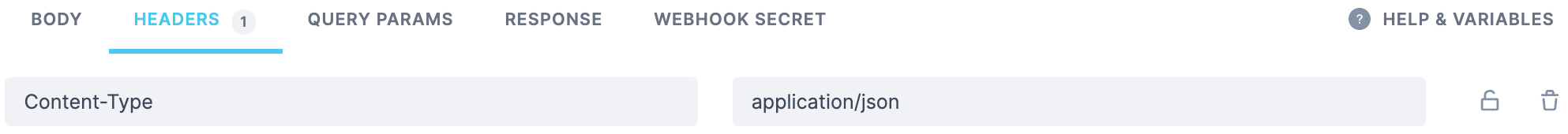

(2) It is recommended to add the Header
Content-Type as application/json.
(d) Now, you can verify if the integration works fine by clicking on Test webhook which will create an incident in Squadcast
(e) In the Send when section, choose
a check fails, a check recovers without fail. The other two options, a check degrades and an SSL certificate is due to expire in a few days are optional, based on your requirement(f) Select the
checks and groups that you want to add to this webhook channel as Subscribers(g) Save webhook configuration
That is it, you are now good to go! Whenever an alert is triggered in Checkly, an incident will be created automatically in Squadcast. When an alert is resolved in Checkly, the corresponding incident will get auto-resolved in Squadcast.
