# Amazon Cloudwatch (AWS) Integration

Follow these steps to configure a service and seamlessly transfer related alert data from CloudWatch.

Squadcast will process the information and create incidents based on your preferences.

## Using Amazon CloudWatch as an Alert Source

1. Navigate to **Services** -> **Service Overview** -> select or search for your Service. Expand the accordion -> In the Alert Sources section, click **Add**.

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-4fbd74e7ca0b30173c47a1d58ed6a0804a0465aa%2FAlert_Sources.png?alt=media&#x26;token=aaca6610-9d18-4dd4-9cf5-320042f326f1" alt="How to configure Amazon Cloudwatch integration in Squadcast" width="563"><figcaption></figcaption></figure>

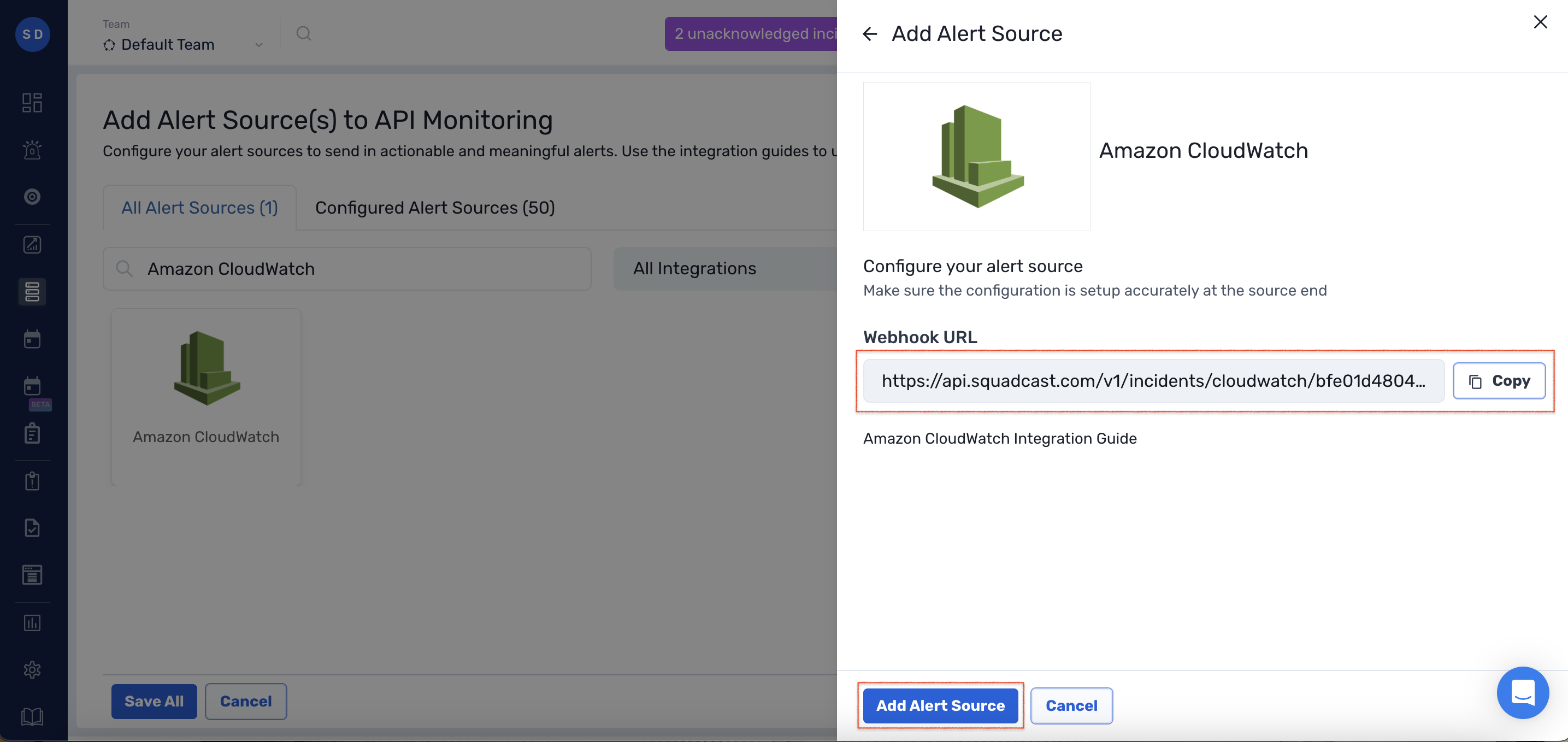

2\. Select **Amazon CloudWatch**. Copy the displayed **Webhook URL** to [<mark style="color:blue;">configure</mark>](#create-a-squadcast-webhook-in-amazon-cloudwatch) it within **Amazon CloudWatch.** Finish by clicking **Add Alert Source** -> **Done**.

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-d10e0838a9822aad72d1811aacebdf44d895d3df%2FAmazon_cloudwatch_image1.png?alt=media" alt="Steps to add Amazon CloudWatch integration to a service in Squadcast" width="563"><figcaption></figcaption></figure>

{% hint style="warning" %} <mark style="color:orange;">**Important**</mark>**:**

When an alert source turns <mark style="color:green;">Active</mark>, it’ll show up under Configured Alert Sources. You can either generate a test alert from the integration or wait for a real-time alert to be generated by the Alert Source.\
\
An Alert Source is <mark style="color:green;">active</mark> if there is a recorded incident via that Alert Source for the Service.
{% endhint %}

## Create a Squadcast Webhook in Amazon CloudWatch

1. Now log in to your AWS account and proceed to SNS.

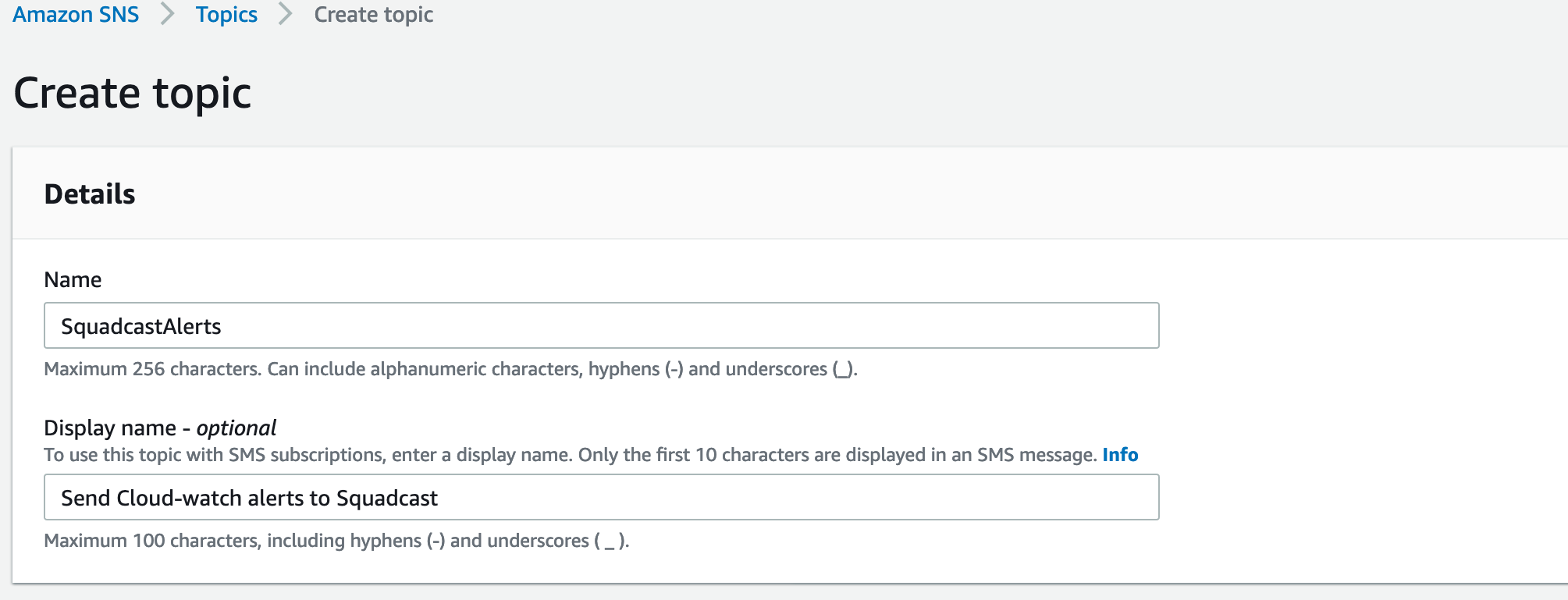

2. Click on "**Create topic**" to configure the display name and related details. Fill in the details as per your requirements and then click on "Create topic".

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-aff00a37526f3c9b44732cd3bfe8bac9ecbb4e54%2Faws_2.png?alt=media&#x26;token=ae94cbba-6faa-4709-97df-ac1a786b139c" alt="Create a Squadcast Webhook in Amazon CloudWatch - Topic Configuration: Fill in Details and Create Topic" width="563"><figcaption></figcaption></figure>

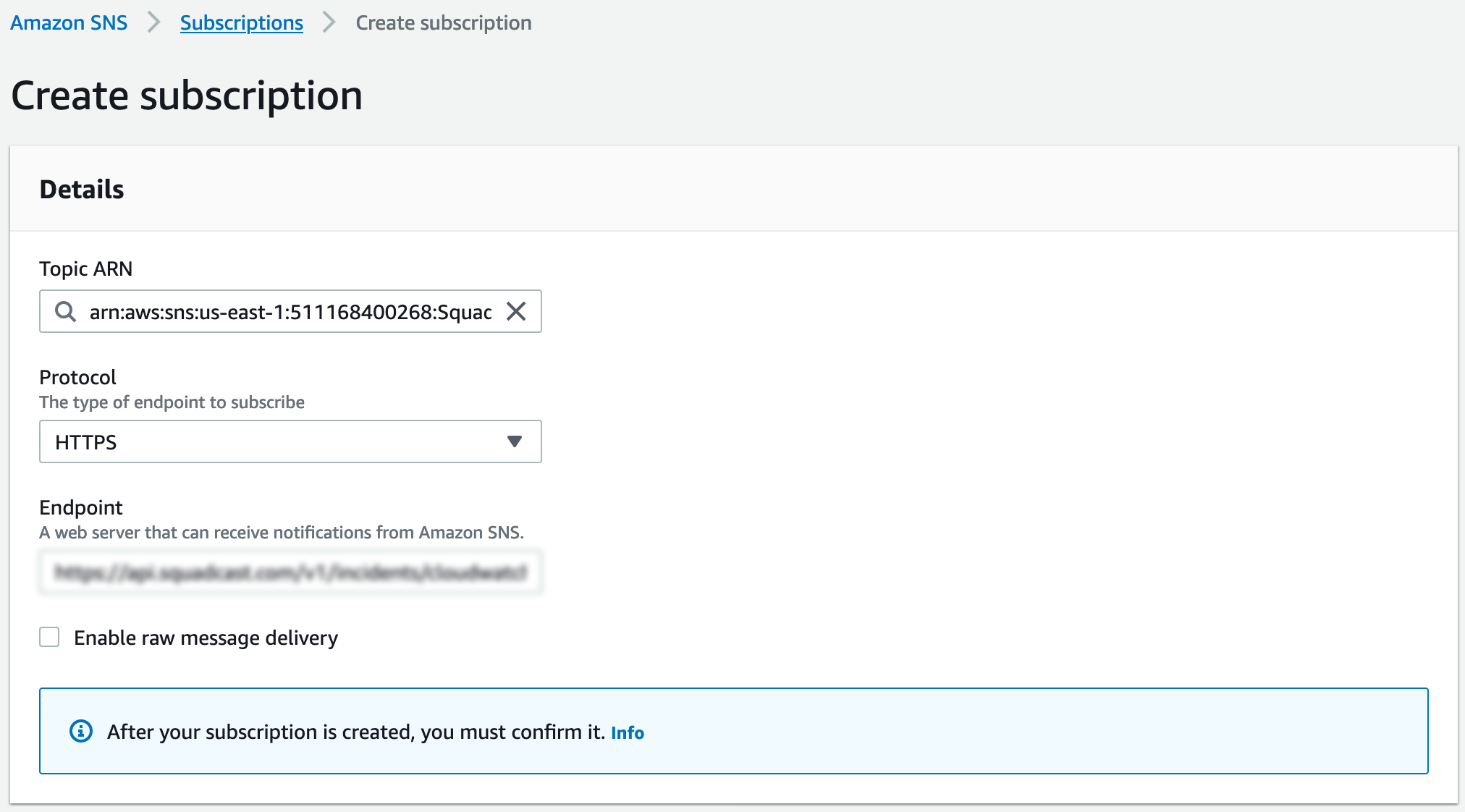

3. Now inside the topic, click on "**Create subscription**" to get "Create subscription" page. Select the protocol as "HTTPS" and in the endpoint enter the URL that was copied from Squadcast. Finally, click on "Create subscription" to create the subscription.

{% hint style="warning" %}
**Important**

Ensure that the `Enable raw message Delivery` checkbox remains unchecked.
{% endhint %}

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-26313c2e0eb75eaa2bde9db8a9e52cfa4c61d654%2Faws_3.png?alt=media&#x26;token=161a03d4-5295-4d7f-893d-562438f9d2db" alt="Create Subscription - Configure HTTPS Protocol and Enter Squadcast Endpoint URL for Notification Delivery" width="563"><figcaption></figcaption></figure>

4. The "**Subscription ID**" for the subscription should immediately change from "PendingConfirmation" to "Confirmed". Click on the refresh button to verify the same.

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-d8929bfd47af0706e3178ad8fcc09e68346d5955%2Faws_4.png?alt=media&#x26;token=7c8c8bda-5dcc-424c-9a92-0415150325b6" alt="Verify Subscription Status - Refresh to Confirm Change from &#x22;PendingConfirmation&#x22; to &#x22;Confirmed&#x22;" width="563"><figcaption></figcaption></figure>

5. Now you can go to any of your AWS services for which you want to set the Alarm. We'll take the example of "EC2" in this case.
6. Right-click on your EC2 instance and go to "**CloudWatch Monitoring**". Click on "**Add/Edit Alarms**".

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-45ba4b2909388ec814270579712c5c3b357cd3c2%2Faws_5.png?alt=media&#x26;token=7eb66bff-53b6-492a-8a0d-3f0f6c47bcfb" alt="Add/Edit Alarms in EC2 - CloudWatch Monitoring - AWS Services" width="563"><figcaption></figcaption></figure>

7. Click on "**Create Alarm**" and in the following dialog box for the "Send a notification to" drop-down, select the topic you created earlier. Configure the alarm as per your requirements and finally click on "**Create Alarm**". Now you will start receiving incidents on Squadcast whenever this Alarm moves to the "**ALARM" state**.

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-1457eb2016c8fe6cdbbc142259a5fc57ae241eff%2Faws_6.png?alt=media&#x26;token=62ae8386-a83f-4136-b2c4-c29a6ee2f4fe" alt="Configure Alarm and Topic in CloudWatch for Squadcast Notifications" width="563"><figcaption></figcaption></figure>

8. Under "**Actions**", add a notification selecting "**Whenever this alarm: State is OK**" and "Send notification to:" as the topic you created earlier. Finally, click on "**Save Changes**".

<figure><img src="https://1574591692-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8TaWz01jmUJl58p4ZVel%2Fuploads%2Fgit-blob-f294a00802ab1bc12708300acf70666fc033d311%2Faws_7.png?alt=media&#x26;token=98e113b0-b9ca-4797-9a96-624e4b1d95ee" alt="Configure Notification Actions for CloudWatch Alarm" width="563"><figcaption></figcaption></figure>

Your Amazon CloudWatch Integration is now good to go!

* Whenever an Alarm moves to OK state inside CloudWatch the corresponding incident will **automatically be resolved** in Squadcast.
