Cisco DNAC

Get Cisco DNAC alerts into Squadcast

Cisco DNA Center is at the heart of Cisco’s intent-based network. Cisco DNA Center supports the expression of business intent for network use cases, such as base automation capabilities in the enterprise network. The Analytics and Assurance features of Cisco DNA Center provide end-to-end visibility into the network with full context through data and insights.

You can integrate Cisco DNAC with Squadcast and get those alerts into Squadcast and get notified based on your notification policies.

Create a Squadcast service for Cisco DNAC

Follow the steps below to configure a service so as to extract its related alert data from Cisco DNAC. Squadcast will then process this information to create incidents for this service as per your preferences.

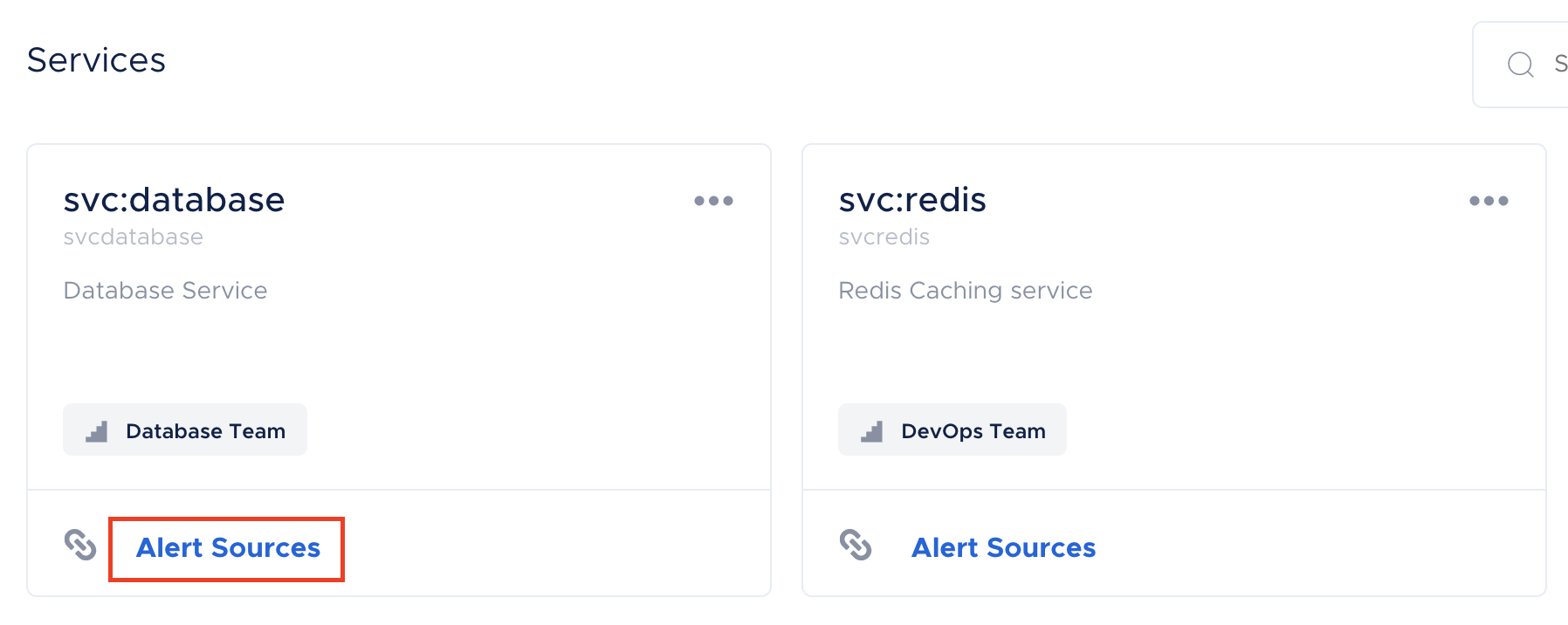

On the Sidebar, click on Services.

You can either navigate to an existing service or make a new one by clicking on “Add Service”.

Check the service details like name, description, and the associated escalation policy for this service and make sure it is correctly entered.

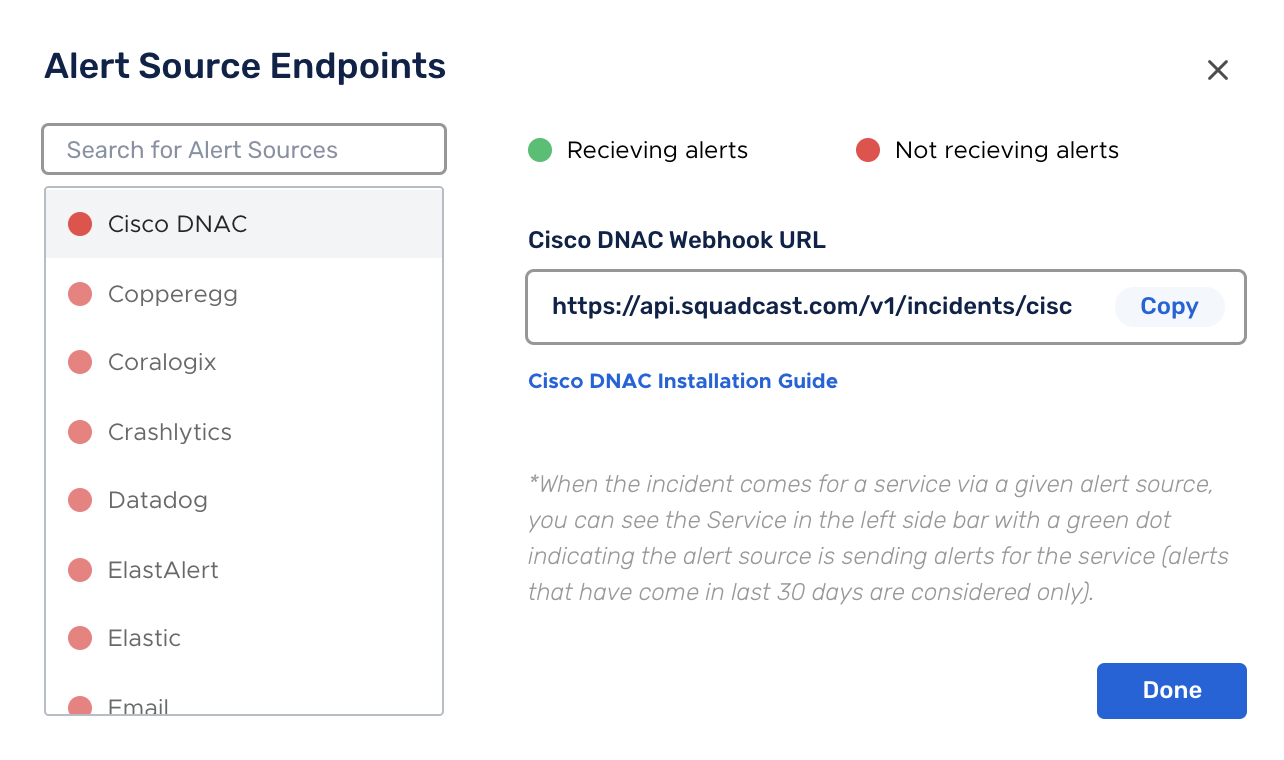

From the integration types drop down select the integration type as “Cisco DNAC”. You will be shown your Cisco DNAC Webhook URL.

Enter the service name and description as required and click on "Save" button to create the service.

Create a Squadcast Webhook URL REST Endpoint in Cisco DNAC

Login to your Cisco DNAC dashboard and go to the Platform tab and click on Bundles.

Browse the bundles and click on the Configure button next to Network Events for REST API Endpoint or SWIM Events for REST API Endpoint depending on which event that you would like to be sent to Squadcast or you can do both if required.

Then click on Rest Endpoint for Publishing Event and select Create a new instance.

Enter the Instance Name as Squadcast and paste the Cisco DNAC Webhook URL you got from the previous section inside REST Endpoint and use admin for both Username and Password and click the Save button.

That's it! The Cisco DNAC Integration is ready and you can Setup the Event sending frequency and subscribe to the relevant network events. For more information, please refer:!getting-started-with-webhooks-on-the-cisco-dna-center-platform/event-schema-and-sample-response
