Sumo Logic

Get alerts from Sumo Logic into Squadcast

Follow the steps below to configure a service so as to extract its related alert data from Sumo Logic.

Squadcast will then process this information to create incidents for this service as per your preferences.

Create a Sumo Logic Service in Squadcast

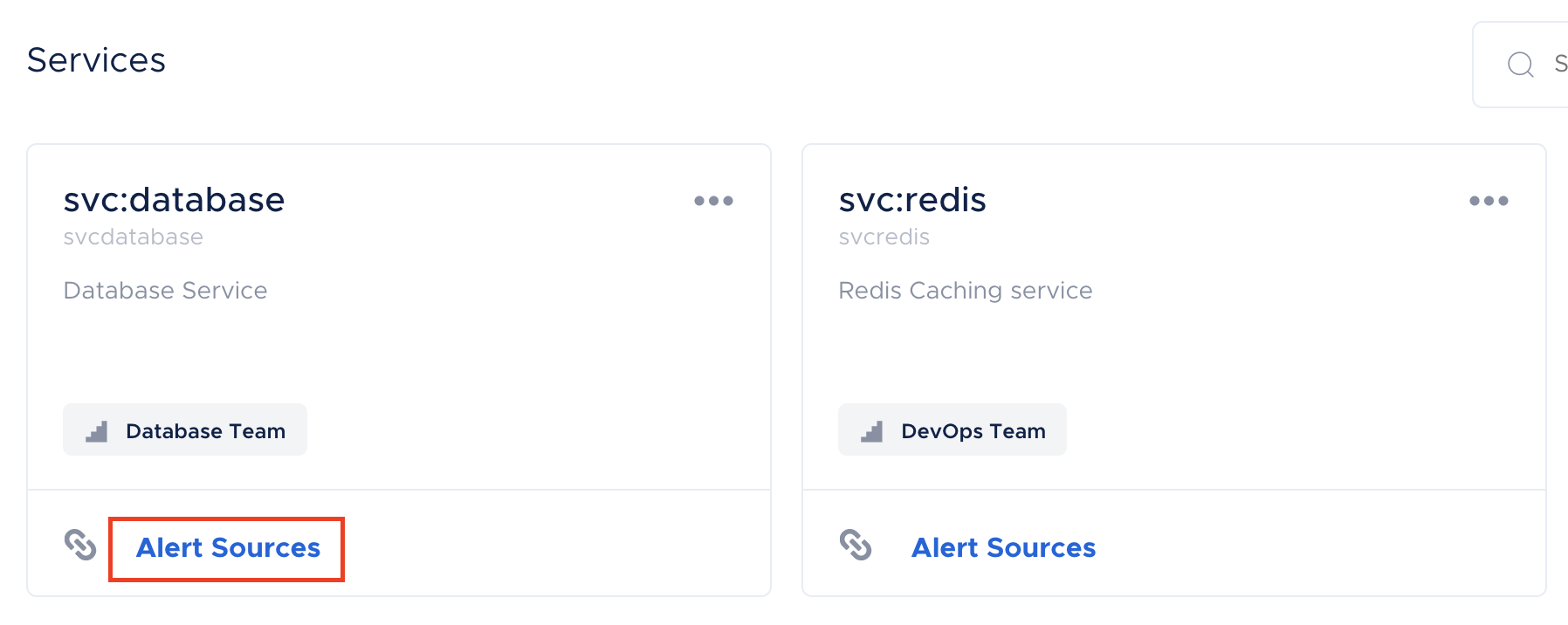

On the Sidebar, click on Services.

You can either navigate to an existing service or make a new one by clicking on Add Service.

Check the service details like name, description, and the associated escalation policy for this service and make sure it is correctly entered.

From the integration types drop down, select the integration type as Sumo Logic.

Enter the service name and description as required.

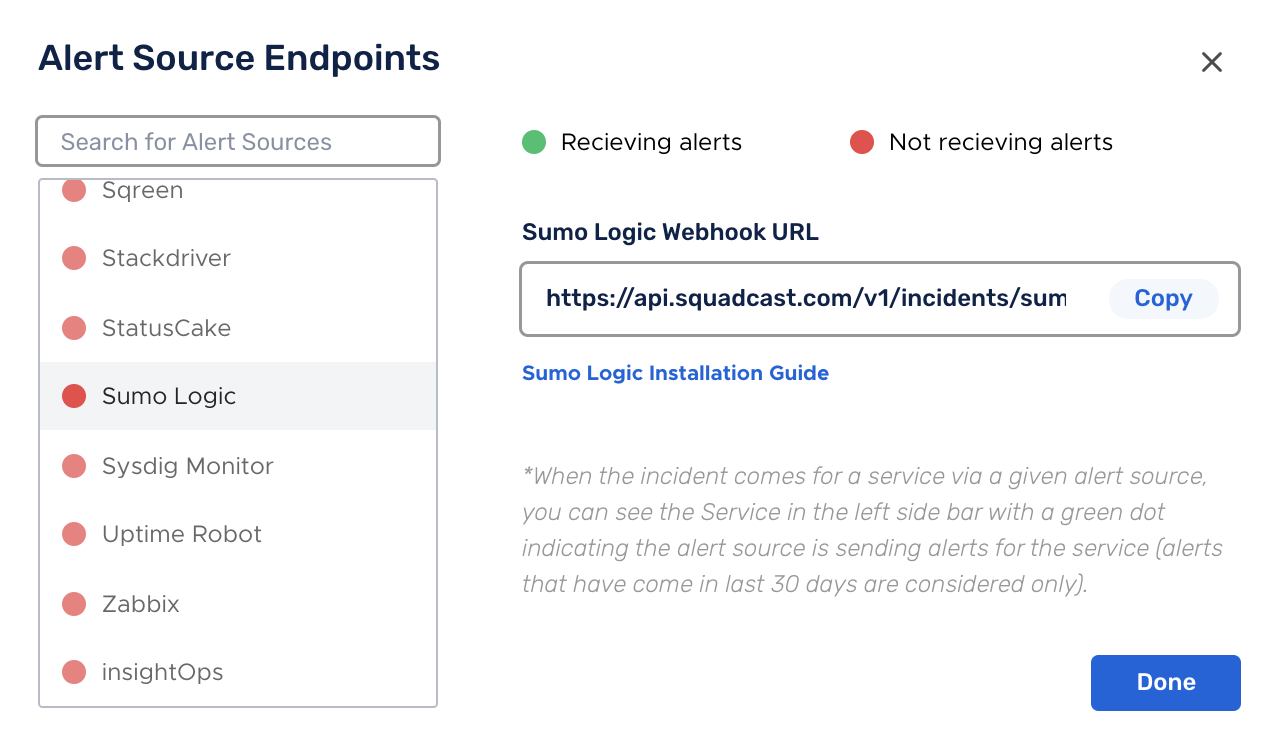

Copy the Sumo Logic Webhook URL and click on Save button to create the service.

Creating Squadcast Webhook in Sumo Logic

With Sumo Logic, the user will have to configure what the payload JSON will be.

So, for integrating with Squadcast, we have defined 2 different payload formats.

  • Log Alerts
  • Metric Alerts

So, we'll create 2 Webhook connections with different payload formats.

  1. Login to your sumo logic dashboard and go to the Settings tab in the Manage Data section.
  1. Select the Connections tab from the topbar.
  1. Click on + button.
  1. Select Webhook option.

  2. Add the Log Alerts webhook connection.

  • Paste the webhook URL copied from the Squadcast dashboard in the URL field.
  • In the payload field, past the following
{
    "type": "log",
    "searchName": "{{SearchName}}",
    "searchDescription": "{{SearchDescription}}",
    "searchQuery": "{{SearchQuery}}",
    "searchQueryURL": "{{SearchQueryUrl}}",
    "timeRange": "{{TimeRange}}",
    "fireTime": "{{FireTime}}",
    "aggregateResultsJson": "{{AggregateResultsJson}}",
    "rawresultsJson": "{{RawResultsJson}}",
    "numRawResults": "{{NumRawResults}}"
}
  1. Similarly, add Metric Alerts webhook connection.
  • Paste the same webhook URL copied from the Squadcast dashboard in the URL field.
  • In the payload field, past the following
{
    "type": "metric",
    "searchName": "{{SearchName}}",
    "searchDescription": "{{SearchDescription}}",
    "searchQuery": "{{SearchQuery}}",
    "searchQueryURL": "{{SearchQueryUrl}}",
    "timeRange": "{{TimeRange}}",
    "fireTime": "{{FireTime}}",
    "alertThreshold": "{{AlertThreshold}}",
    "alertSource": "{{AlertSource}}",
    "alertID": "{{AlertID}}",
    "alertStatus": "{{AlertStatus}}"
}

Setting up Alerting for Logs

  • In the Alert Type drop-down, select Webhook.

  • In the Connection drop-down, select Squadcast Log Alerts.

Setting up Alerting for Metrics

  • In the Send Notification Via dropdown, select Squadcast Metric Alerts.

Now, whenever the webhook is triggered for either Log/Metric, an incident is autmatically created in Squadcast. But, the resolving of incident needs to be done manually by going to Squadcast dashboard.
